Why Water Does Not Flood a Ship Through the Propeller Shaft
A ship’s propeller sits in seawater, but the propeller shaft must pass through the hull to connect with the power system inside.
That creates a counterintuitive question: if the shaft passes through the hull, why does water not pour through that hole into the ship?
The answer is not simply “seal it shut.”
The elegant part of stern-shaft sealing is that it does not always keep every drop of water out. It manages water through pressure, precision, and controlled leakage.

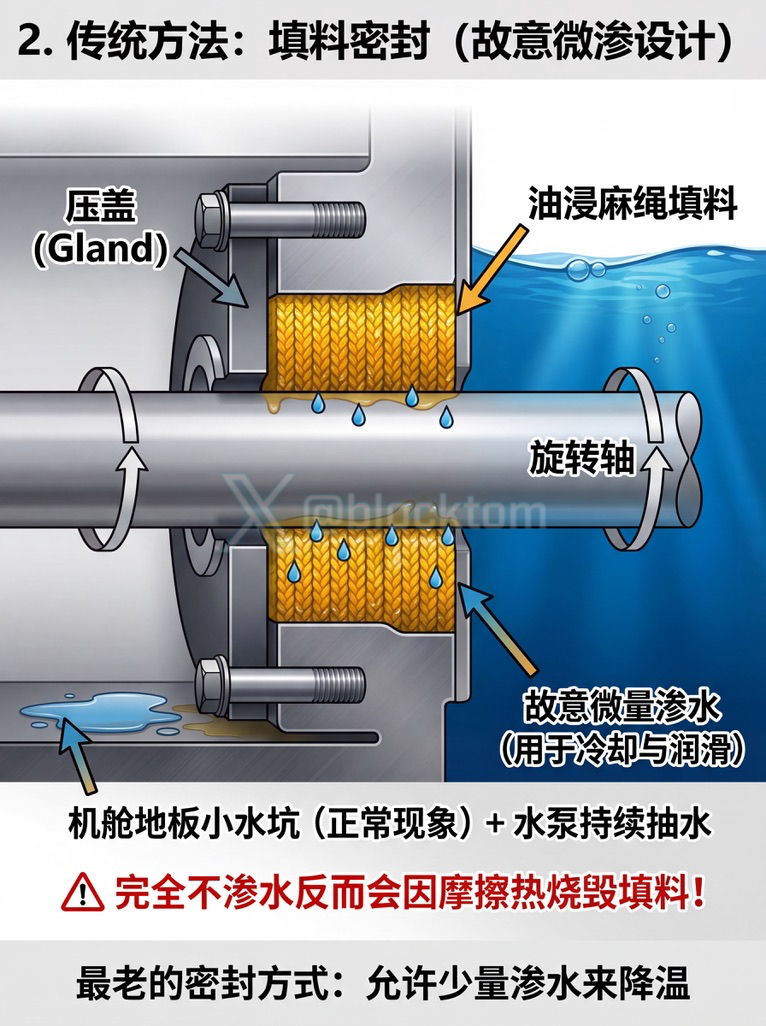

The old method: allow a little leakage
Traditional vessels often used packing glands.
In simple terms, oil-impregnated packing material is placed around the shaft and compressed by a gland so it hugs the rotating shaft.
The logic is basic: stop water, but do not lock the shaft.
Zero leakage can actually be bad. The shaft rotates, the packing rubs, and without any moisture or lubrication, heat can damage the packing.
So old packing systems often allow small, controlled drips.
A little managed leakage in the machinery space is not automatically a failure. It can be collected and removed by bilge pumps.
Early sealing was not about absolute zero leakage. It balanced water blocking with heat and friction control.

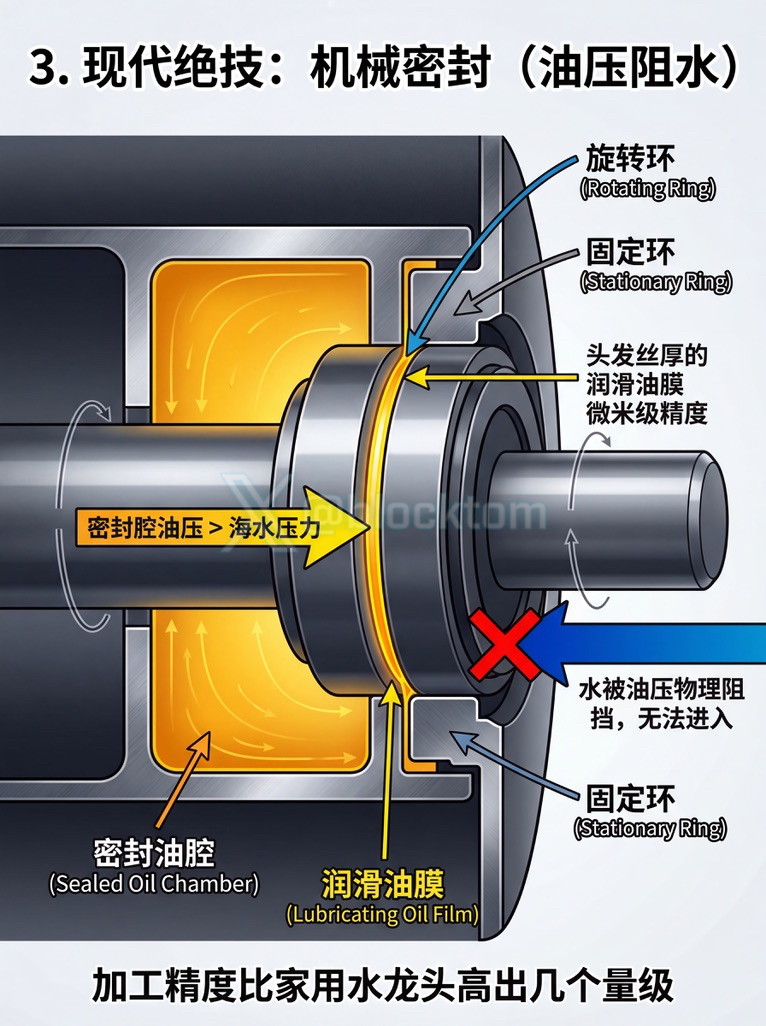

Modern mechanical seals: precision and pressure
Modern ships can use more precise mechanical seals.
Think of two highly finished sealing faces: one rotates with the shaft, and the other remains stationary.
They do not simply grind against each other dry. A thin lubricating film exists between them.
The key is pressure.
Oil or lubricant pressure inside the seal chamber is controlled so outside seawater does not push backward into the ship.
This is not like a simple faucet washer. It depends on materials, surface precision, lubrication, pressure control, and temperature management working together.
Modern sealing does not block water by brute force. It uses pressure relationships so water has no reason to enter.

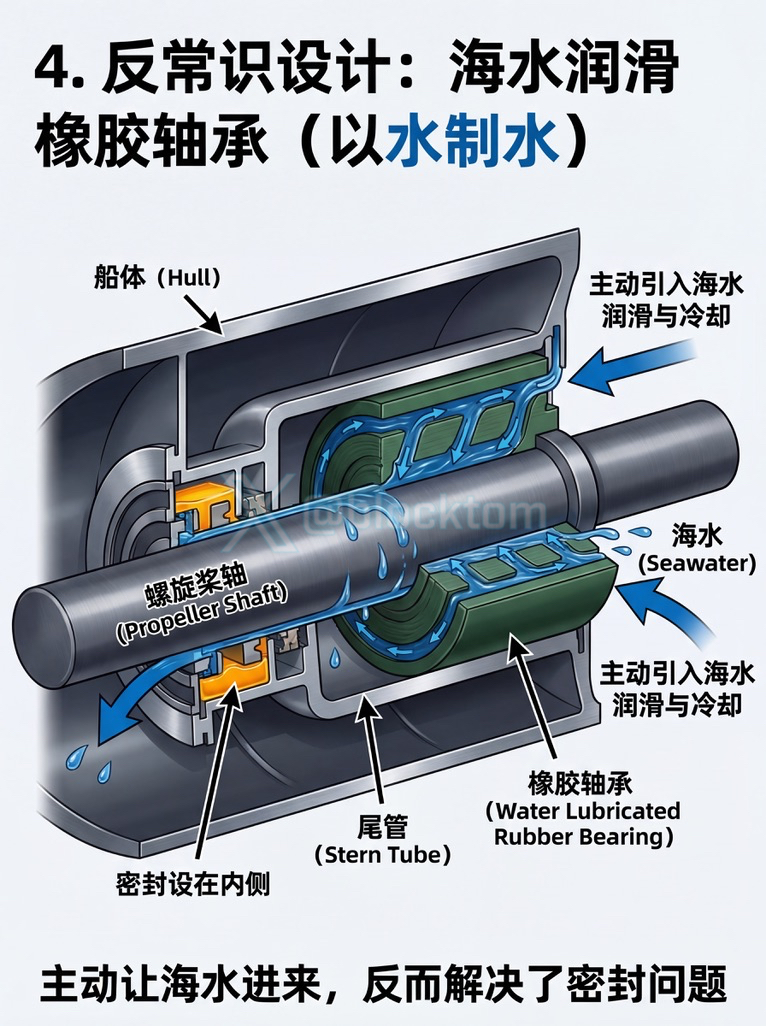

The more surprising method: let water work
Some systems use water-lubricated bearings.
That sounds even stranger: if water is the danger, why invite seawater in?
Because water can act as both lubricant and coolant.
In a controlled structure, seawater enters the stern-bearing area, flows through grooves, forms a water film, supports the rotating shaft, and carries away friction heat.
That does not mean seawater can enter the engine room freely.
Water is allowed only in a specific bearing zone. Another seal on the inboard side separates the wet zone from the machinery space.
Smart engineering often does not reject a force. It confines the force and makes it do useful work.
How does the water leave?
Water in a water-lubricated bearing does not always require constant pumping.
Pressure differences, shaft rotation, groove geometry, and discharge paths help water flow through the bearing zone after lubrication and cooling.
When the ship is running, higher speed creates more friction heat and requires more cooling flow.
A well-designed system lets cooling and drainage broadly match operating state.
When the ship is stopped, the shaft is not rotating and friction heat is minimal. The system condition is different.
That is why marine engineering cannot be understood by looking at one part alone. The whole system must work across different operating conditions.

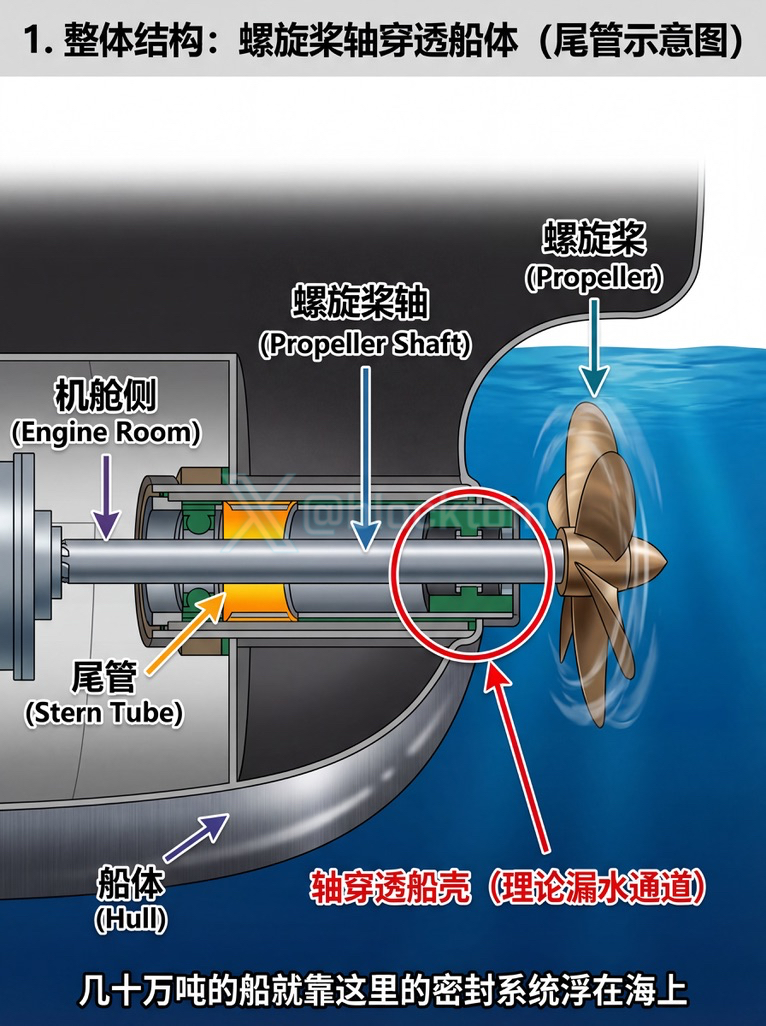

The stern tube is not just a hole
The section where the propeller shaft leaves the hull involves a stern tube, bearings, seals, lubrication, cooling, monitoring, and drainage.
You see a shaft passing through a hull.
An engineer sees a boundary-management system:
- Where water may exist.
- Where water must not enter.
- Where lubrication is needed.
- Where heat must be removed.
- How pressure differences are controlled.
- How wear is detected and maintained.
A ship does not flood through the propeller shaft because that “hole” is designed as a layered defense system.
The beauty of engineering
People often imagine sealing as simply closing a gap.
In rotating machinery, fully closing a gap is often impossible. The shaft must rotate, carry load, shed heat, lubricate, and remain reliable for long periods.
The real answer is not seamlessness. It is control.
Let moving parts move. Let tiny leakage happen where it is acceptable. Let water enter only the zones designed for it. Let pressure, materials, and precision create order.
That is the beauty of engineering.
It does not deny natural forces. It brings them inside system boundaries.
